Isolated CAN transceiver

CTM series isolation transceiver is a module product applied to CAN-bus bus transmission and isolation in industrial field, which can effectively solve the problems such as bus interference and abnormal communication. Compared with the traditional design, CTM series products have built-in complete isolation DC-DC circuit, signal isolation circuit, CAN bus transceiver circuit and bus protection circuit. They have higher integration and reliability and are suitable for the occasions requiring high-stability CAN bus communication, and they can effectively help users improve the protection level of bus communication.

Baud rate: 5k~1Mbps or 40k~5Mbps
Protocol: CAN2.0A/B, CAN FD
Number of nodes: 110
Operating temperature: -40~85℃ or -40~105℃
Isolation voltage: 2500VDC or 3500VDC
Comply with the international standard of “ISO 11898-2”.
Mini small size or standard modular package
Shell and encapsulating materials meet UL94 V-0 standard.
Low electromagnetic radiation and high electromagnetic interference resistance

Isolated CAN transceiver

Selection Table

Product SN	Product data	Characteristics	Supply voltage	Baud rate (bps)	Isolation voltage	Number of nodes	Environment temperature (℃)	Sample application
CTM1051R(A)T	Data download	Single-channel high isolation voltage	3.3V ; 5V	40K~5M	5000VAC	110个	-40~105	Sample application
CTM1051J(A)T	Data download	Single-channel high isolation voltage	3.3V ; 5V	40K-5M	5000VDC	110个	-40~105	Sample application
CTM1051(A)MG	Data download	National production, small size	3.3V ; 5V	40K~5M	2500VDC	110个	-40~105	Sample application
CTM1051(A)M	Data download	58V pin withstand voltage, small size	3.3V ; 5V	40K~5M	2500VDC	110个	-40~105	Sample application

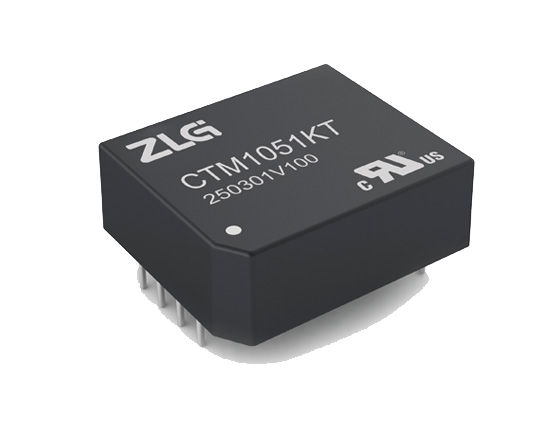

CTM1051K(A)T	Data download	Single-channel high isolation voltage	3.3V ; 5V	40K-1M	3500VDC	110个	-40~85	Sample application
CTM8251K(A)T	Data download	Single-channel high isolation voltage	3.3V ; 5V	5K-1M	3500VDC	110个	-40~85	Sample application
CTM1051(A)HP	Data download	High surge protection isolation	3.3V ; 5V	40K-1M	2500VDC	110个	-40~85	Sample application
CTM1044KAT	Data download	Standby awakening	3.3V	40k~1M	2500VDC	110个	-40~85	Sample application
CTM8251K(A)D	Data download	Two-channel isolated CAN	3.3V ; 5V	5K-1M	2500VDC	110个	-40~85	Sample application

Evaluation kit

Product model	Data download	Supply voltage	Protocol	Operating temperature range	Sample application
CTM-RSM-Eval	Data download	12~36VDC	CAN/RS-485/RS-232	0~60℃	Sample application

[Package library] Package and download of power supply and isolation module products

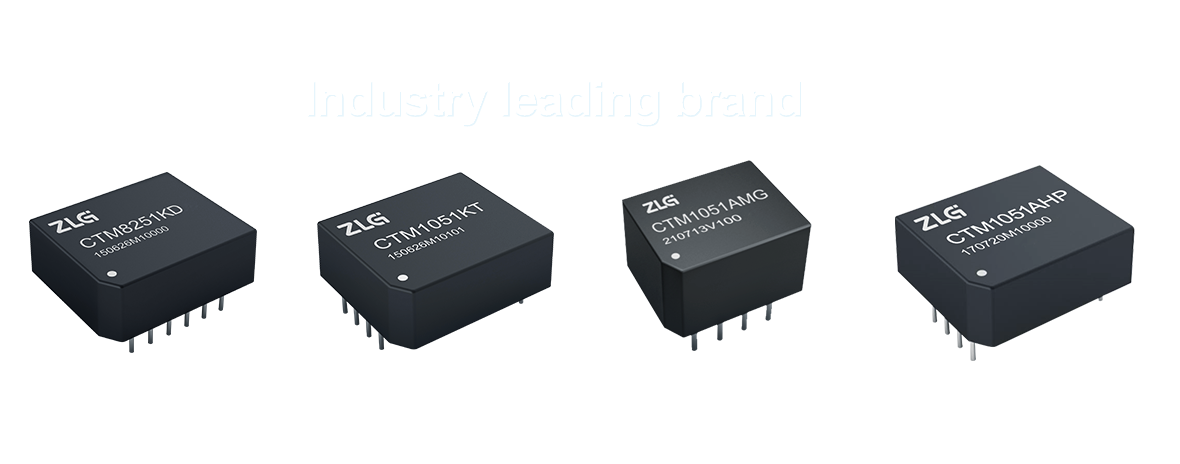

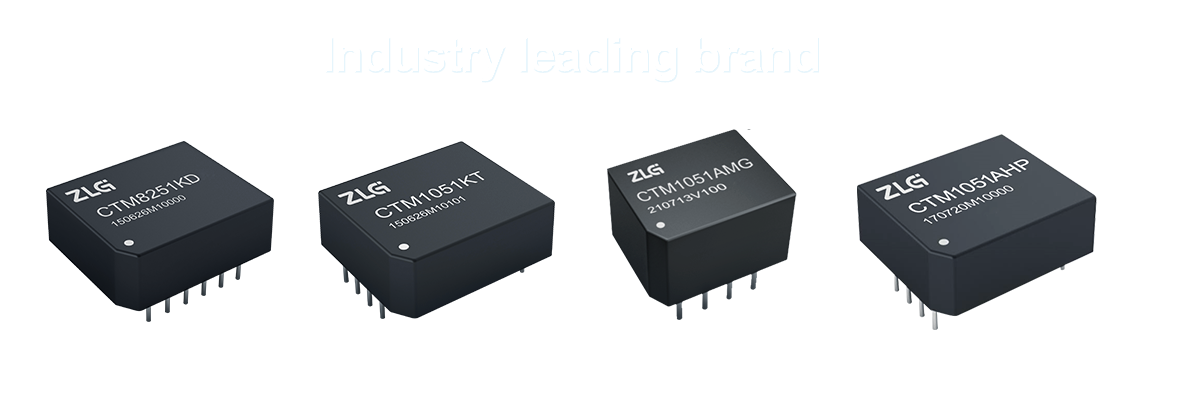

Isolated CAN transceiver brand

Zhiyuan Electronics released the first isolated CAN transceiver in China in 2003, and has accumulated CAN bus isolation technology for nearly 20 years. At present, CTM series isolated transceivers cover all CAN-bus communication protocols such as CAN2.0A, CAN2.0B and CAN FD, and they are the leading brands of isolated CAN transceivers in China.

Isolated CAN transceiver brand

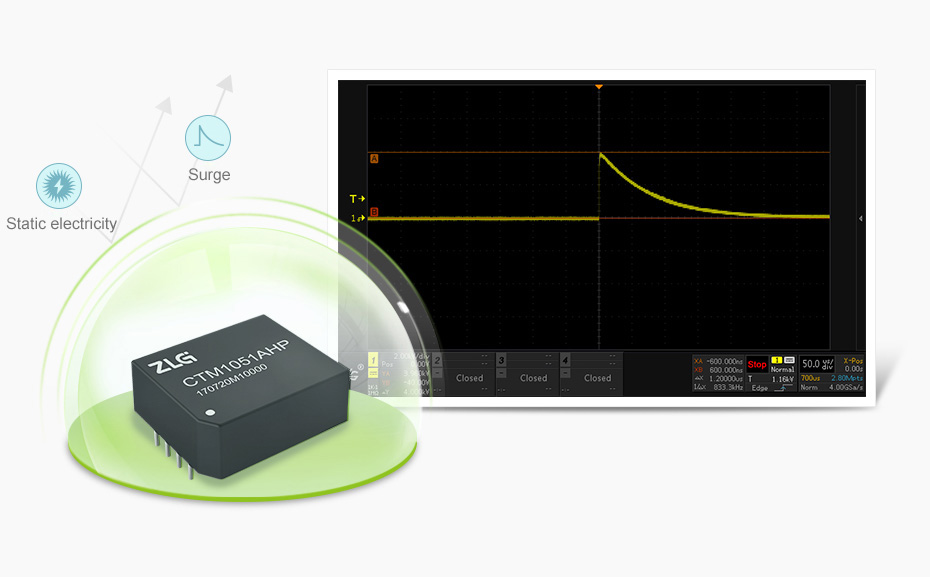

High static electricity and surge protection level

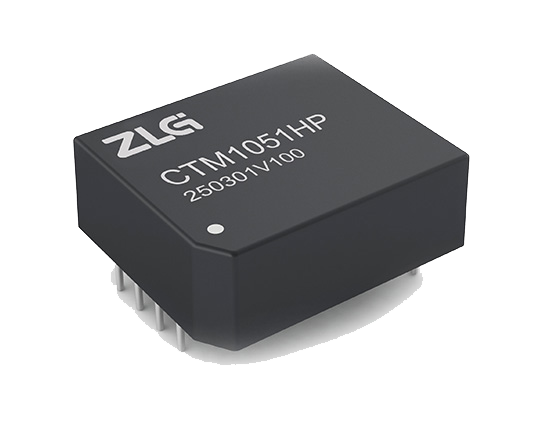

CTM1051 (A) HP integrates a highly reliable surge protection circuit. The immunity to electrostatic discharge is up to 8kV, and the immunity to lightning surge is up to 4kV. The product can effectively solve the abnormal communication problems caused by electrostatic and surge interference in industrial field, and it is widely applied in motors, electric power and other industries.

Support CAN FD protocol bus isolation

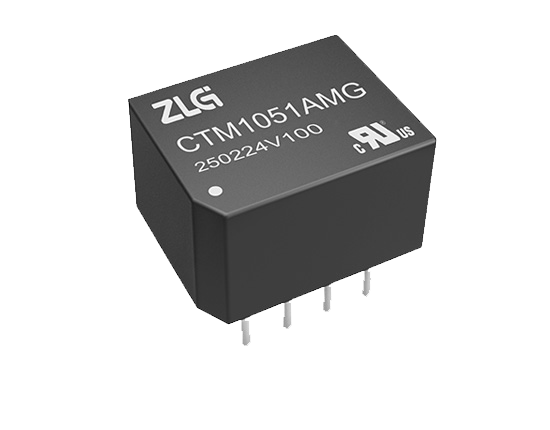

With the rapid development of automobile electronics and industrial automation, the number of devices and data on the CAN bus has greatly increased, which brings great challenges to the CAN bus. In order to meet the requirements of high bandwidth and data throughput, the high-speed CAN protocol-CAN FD was produced. Zhiyuan Electronics has launched CTM1051AMG, a CAN FD isolation transceiver with good performance and high speed. It is small in size (board occupying area: only 12.8mm*7.7mm) and supports the transmission rate up to 5Mbps. It is an ideal solution for CAN FD isolation application.

Support CAN FD protocol bus isolation

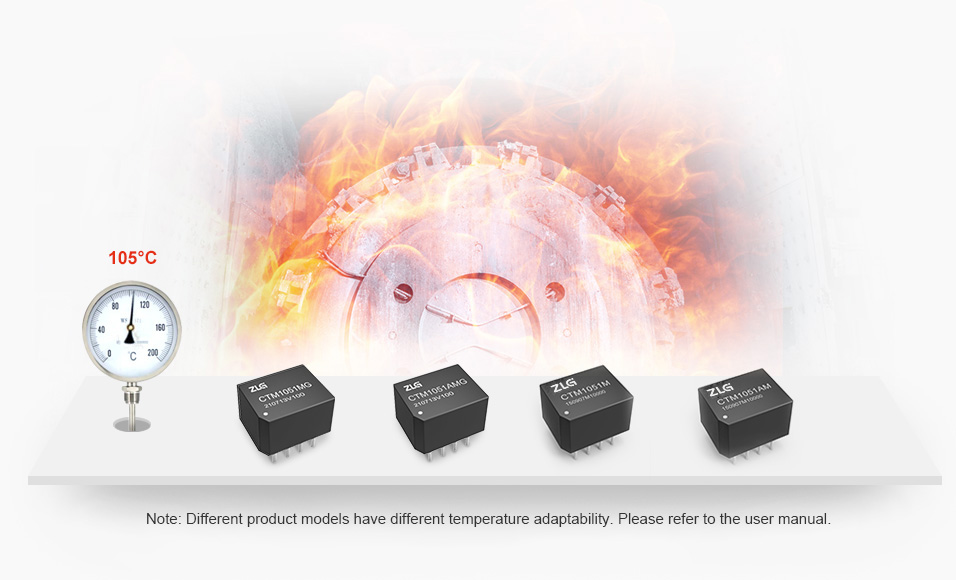

Wide temperature adaptation range, conquering the difficulties in “hot” and cold industrial site

CTM series isolated transceivers have a high temperature adaptation range of -40℃~105℃, which can meet the requirements of most complex and harsh industrial field applications.

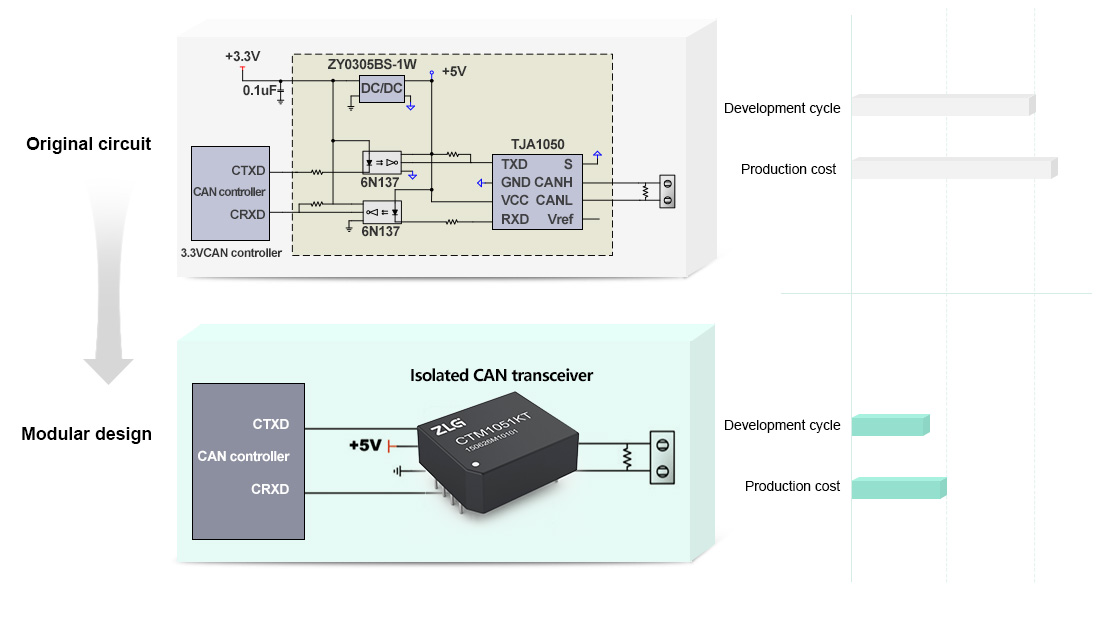

Modular design greatly shortens the user development cycle

CTM series isolation transceiver adopts mature and reliable CAN bus isolation technology. Compared with the traditional discrete device solutions, the product has higher integration and reliability, which can effectively improve the protection level of bus communication, greatly reduce the purchase and production costs of users and shorten the development cycle.

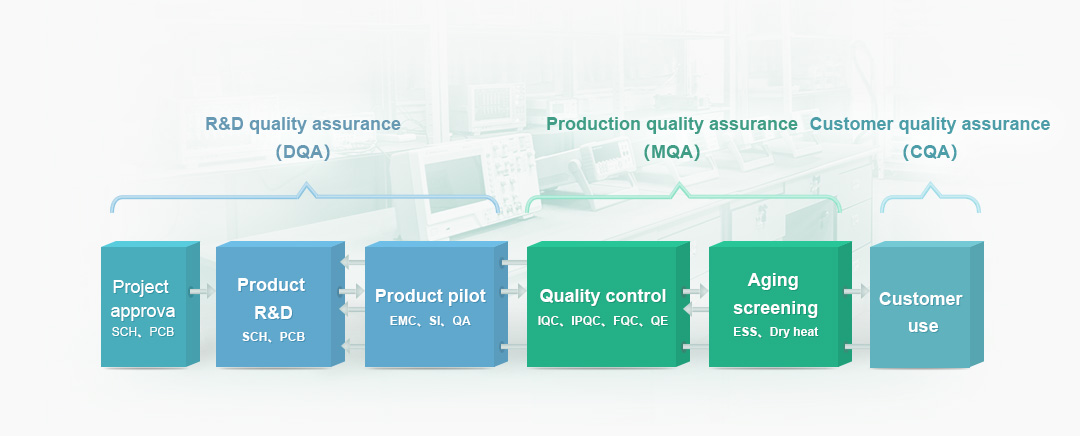

Complete quality assurance system, stable and reliable performance

Zhiyuan Electronics has a complete product quality assurance system, and it has accumulated CAN bus isolation technology for nearly 20 years. From product development, testing, production to usage, it is closely linked to ensure the stable and reliable performance of CTM series isolation transceivers.

Stable, reliable, and widely applied

CTM series isolated transceiver has been verified in the market for nearly 20 years, and it has been widely applied in automobile electronics, industrial control, rail transit, instruments, petrochemical industry and other industrial fields. It is an isolated CAN transceiver with a high market share.
