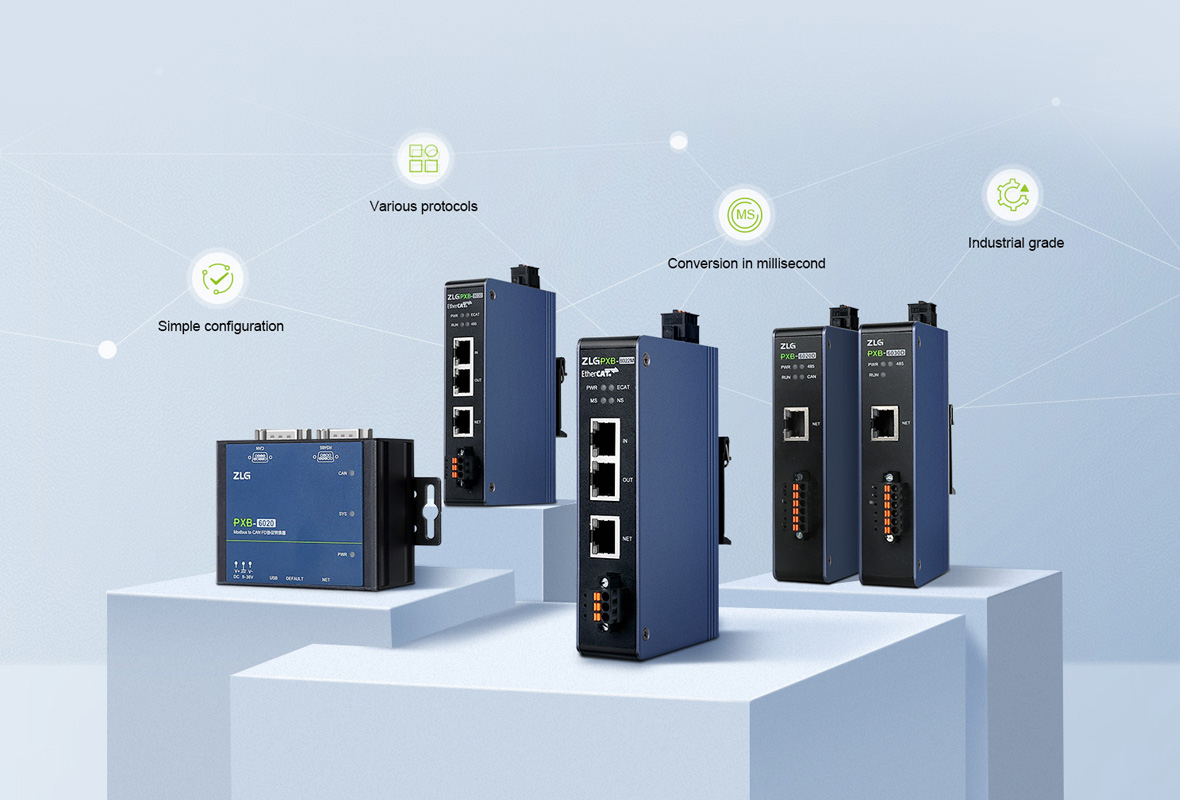

PXB series protocol converter
Make industrial interconnection easier
PXB series protocol converter
Make industrial interconnection easier
Selection of protocol conversion
Select the two network interfaces you need to find the gateway.
Selection Table
| Communication mode | Modbus RTU/ModbusTCP Mounted with 35mm guide rail | Modbus RTU/Modbus TCP Mounted with hangers | EtheCAT slave Mounted with 35mm guide rail | EtheCAT master Mounted with 35mm guide rail | PROFINET slave Mounted with 35mm guide rail | EtherNet/IP slave Mounted with 35mm guide rail |
|---|---|---|---|---|---|---|
| CAN/CANFD | PXB-6020D | PXB-6020 | PXB-8020 | PXB-7080M(to be listed) | PXB-8220 | PXB-8120 |
| CANopen | PXB-6021D | PXB-6021 | PXB-8021(to be listed) | PXB-7180M(to be listed) | * | * |
| CANopen master | PXB-6021DM | PXB-6021M | PXB-8021M | * | PXB-8221M | PXB-8121M(to be listed) |
| DeviceNet | PXB-6022D | PXB-6022 | PXB-8022 | PXB-7280M(to be listed) | * | * |
| DeviceNet master | PXB-6022DM | PXB-6022M | PXB-8022M | * | PXB-8222M | PXB-8122M(to be listed) |
| Modbus RTU | PXB-6030D | PXB-6030 | PXB-8030 | PXB-6080M(to be listed) | PXB-8210 | PXB-8110 |
| Modbus TCP | PXB-6030D | PXB-6030 | PXB-8030 | PXB-6080M(to be listed) | * | * |
| PROFINET slave | * | * | * | PXB-8280M(to be listed) | * | * |
| J1939 | * | PXB-6023 | * | * | * | * |
| OPC UA | PXB-6031D | PXB-6031 | * | * | * | * |
| TCP/IP | * | * | PXB-8032 | * | * |
Simple configuration, simple and easy to use

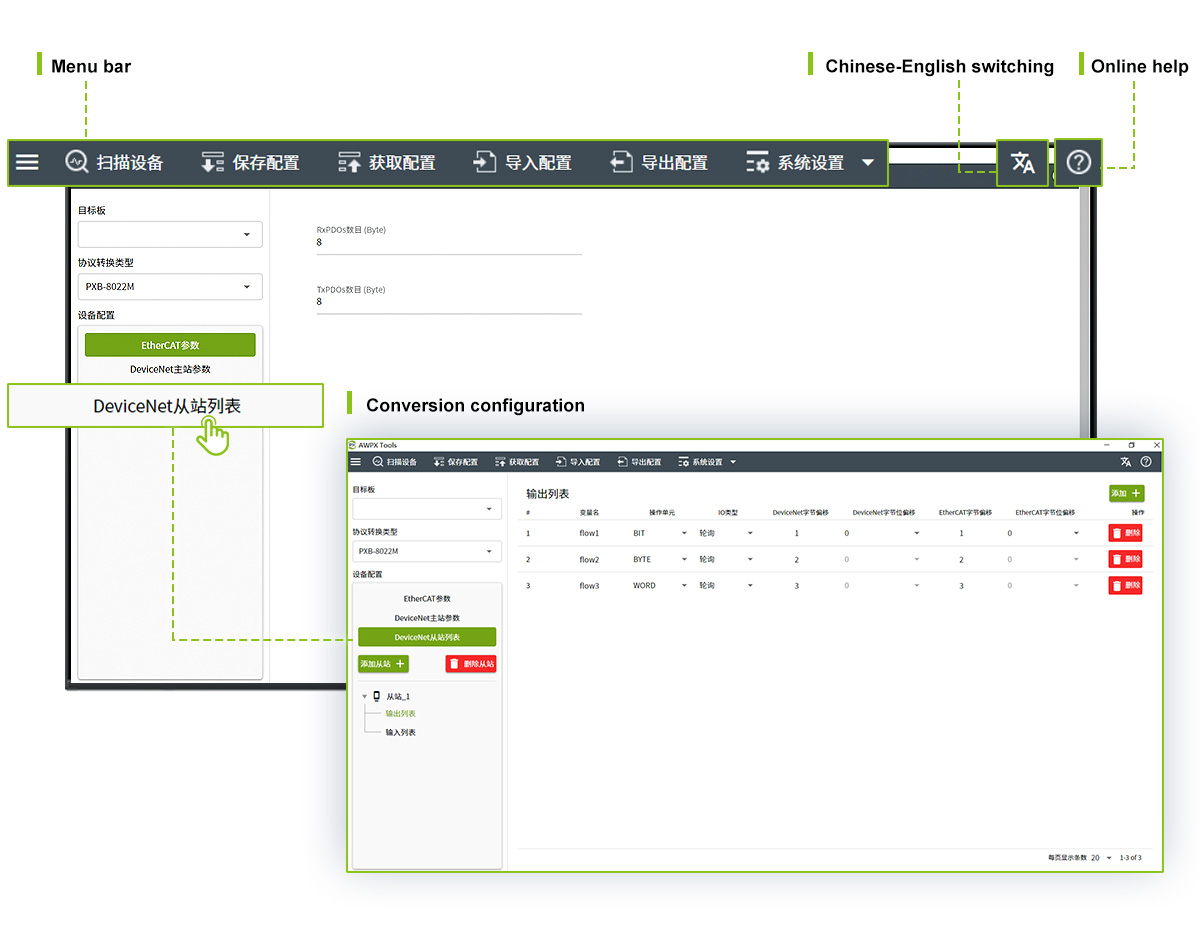

The PXB series protocol converter is configured by the AWPX Tools software (“AWPX”). The interface is simple and easy to use, and online documents can be reviewed in time. You can get started quickly.

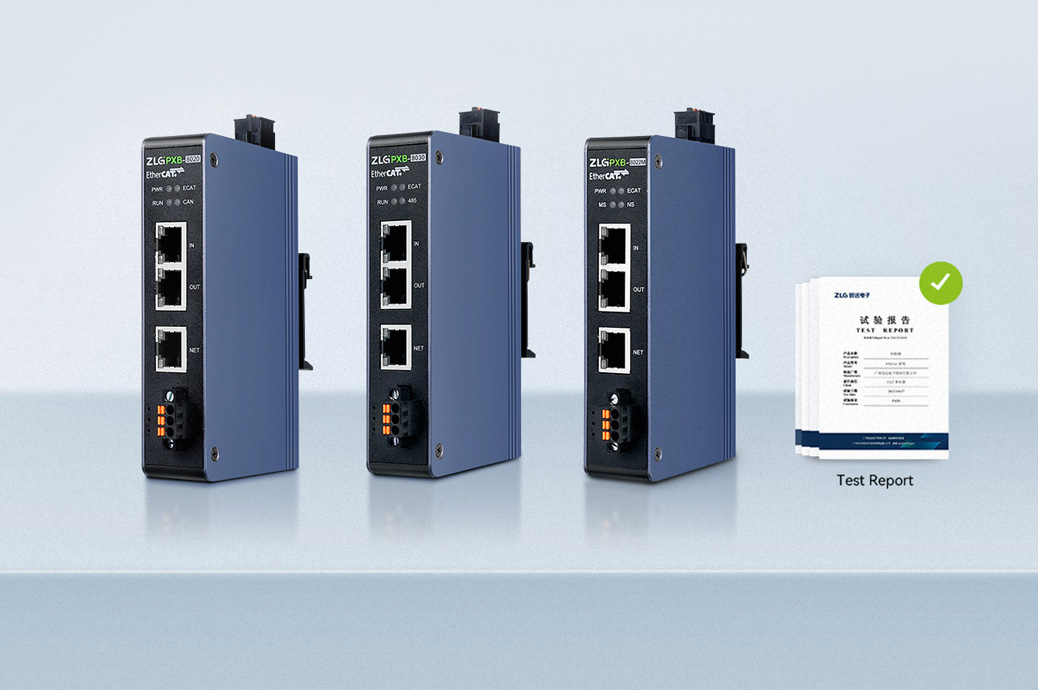

Exquisite and compact, long-term failure-free operation, industrial grade

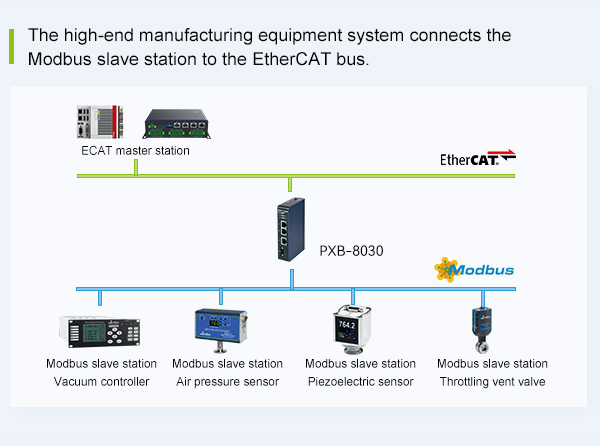

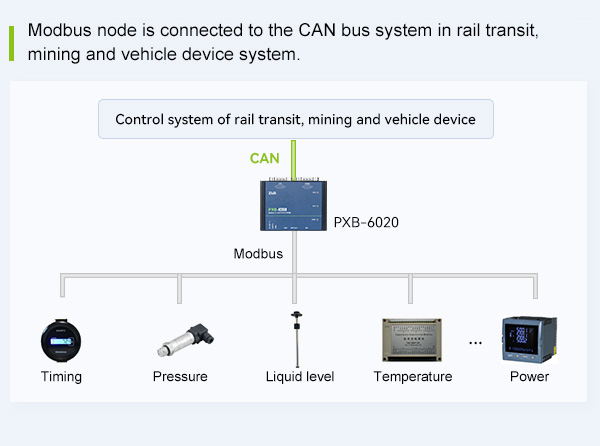

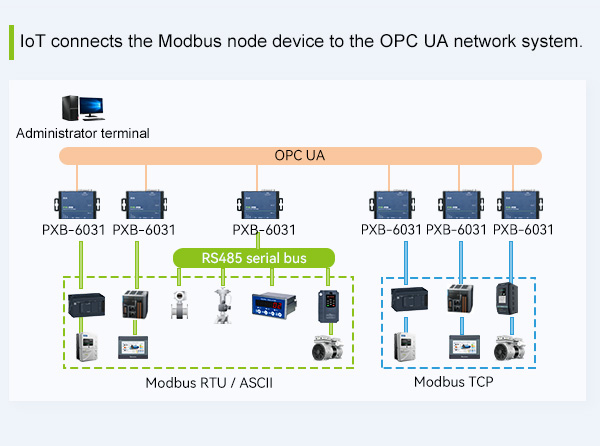

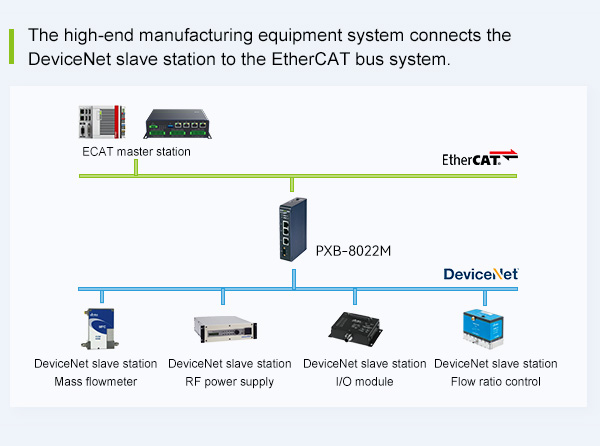

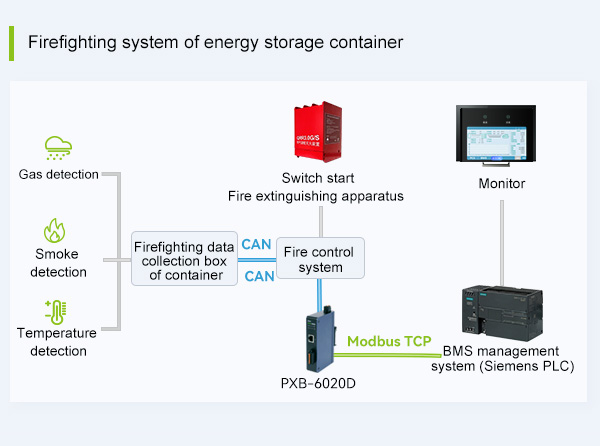

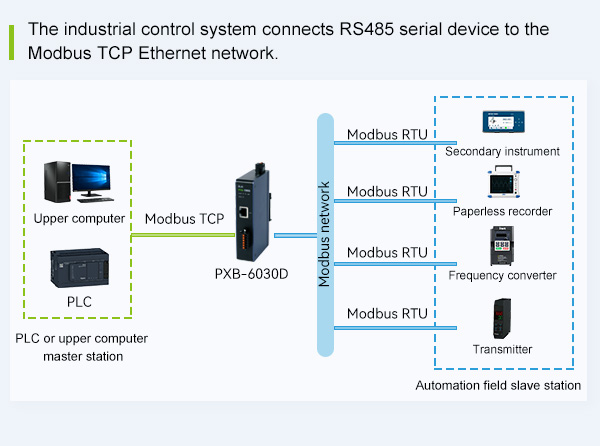

Typical applications
